LookAhead - A Webcam-Based Iris Tracker

September 24, 2024

Inspired by WebGazer.js, in this project, I explored accessible technology and its real-world applications. LookAhead allows users to predict gaze positions with iris coordinates entirely in Python.

This project consists of two core parts:

  1. Blendshape-Based Gaze Prediction: A basic approach that used predefined facial landmarks for gaze estimation.
  2. On-the-Go Model Training: A system that continuously learns and adapts to user-specific gaze behavior through live interactions (mouse clicks).

The simpler version uses blendshapes built into Mediapipe to detect the direction in which the user is looking, and executes a left-click when the user puckers their lips.

The more advanced (and frankly, cooler) version lets users interact with a set of dots on the screen, capturing their mouse position and iris data with each click. With every click, two regression models (one for x-coor and the other for y-coor) are trained incrementally with this new data. The system then predicts gaze positions based on real-time iris data and visualises them as a blue circle on the screen.

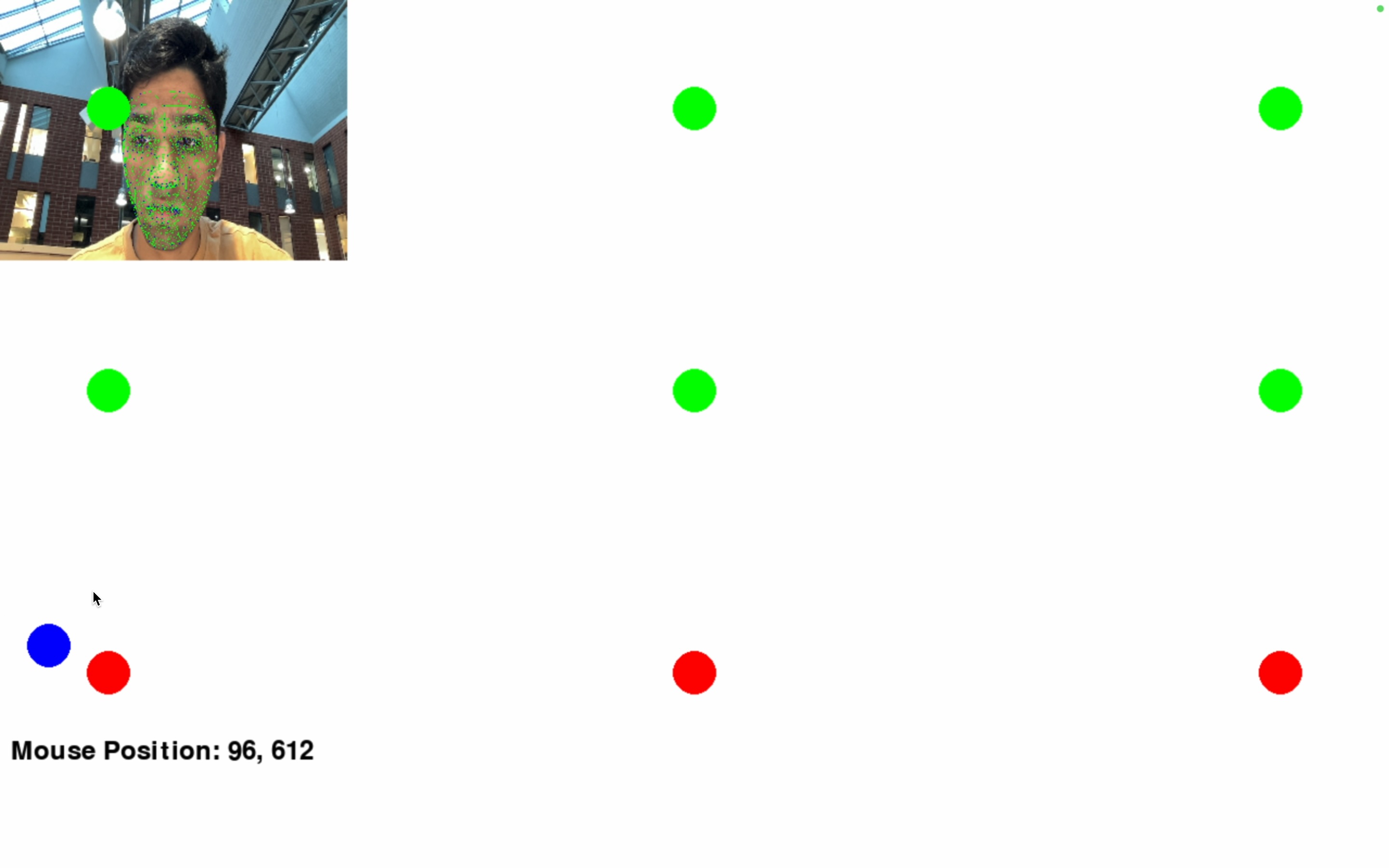

Training the model by clicking dots on the screen.

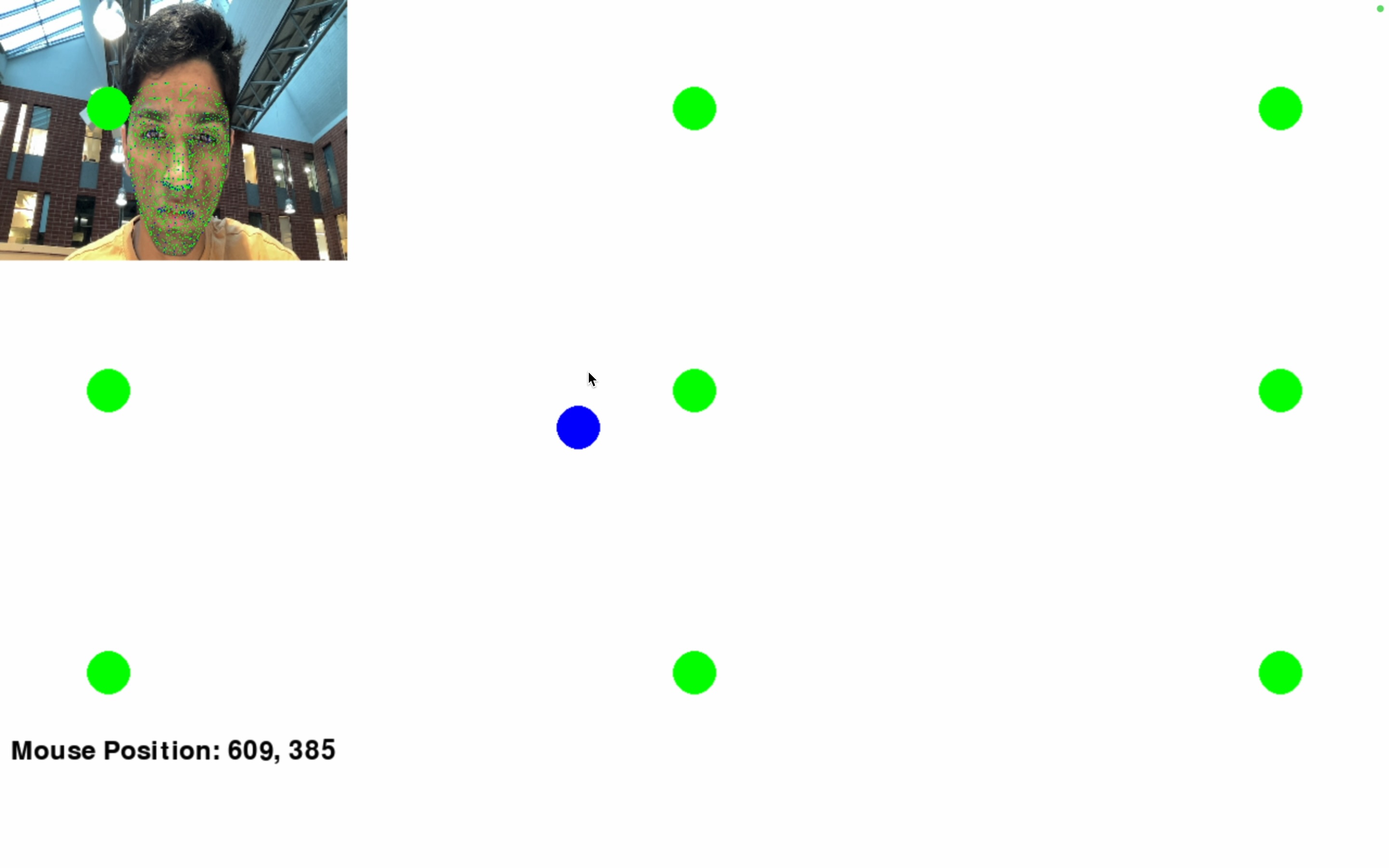

Predicted iris position vs actual mouse cursor location


Technologies used:

  • Python
  • Mediapipe Iris
  • OpenCV
  • Pygame
  • Scikit-learn
